Advanced Logic & Flow ManagementLesson 23

Airflow XComs

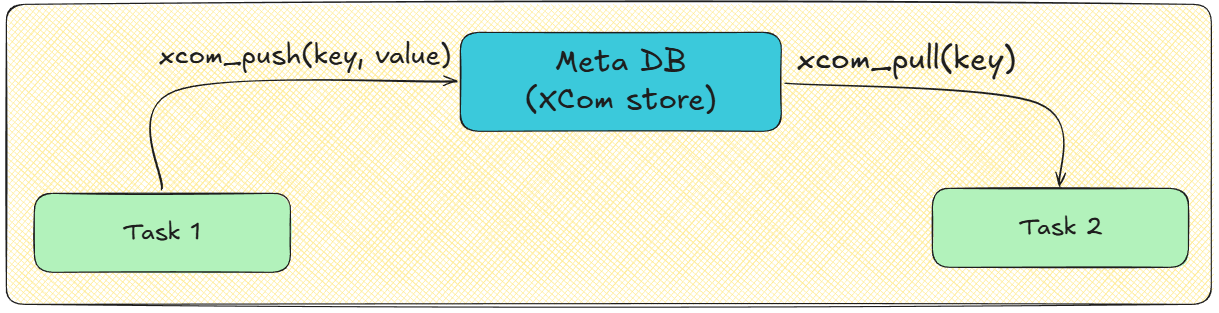

XCom (Cross-Communication) lets tasks share data with each other inside a DAG.

Pasted image 20260502024623.png

XCom Basics

Key Parameters

key='message': Identifier for stored value
value='data': Data to store
task_ids='task1': Source task to pull from
ti.xcom_push(): Send data to XCom
ti.xcom_pull(): Retrieve data from XCom
Data is stored in Airflow metadata DB 📌 Use case: Share data between tasks inside DAG

Push & Pull Methods

Method	Direction	How
`ti.xcom_push(key, value)`	Send data	Manual
`return value`	Send data	Auto (implicit push)
`ti.xcom_pull(key, task_ids)`	Receive data	Manual

Auto Push

# ===================== Import Libraries =====================
from airflow import DAG
from airflow.operators.python import PythonOperator
from datetime import datetime
import json


# ===================== Push (Send Data via XCom) =====================
def push_data(ti):
    result = {'rows': 1500, 'status': 'ok'}
    return result


# ===================== Pull (Receive Data via XCom) =====================
def pull_data(ti):
    data = ti.xcom_pull()
    print(f"Got {data['rows']} rows with status: {data['status']}")


# ===================== DAG Definition =====================
with DAG(
    dag_id='xcom_auto_dag',
    start_date=datetime(2026, 4, 20),
    schedule_interval=None,
    catchup=False
) as dag:

    # ===================== Push Task =====================
    push = PythonOperator(
        task_id='push',
        python_callable=push_data
    )

    # ===================== Pull Task =====================
    pull = PythonOperator(
        task_id='pull',
        python_callable=pull_data
    )

    # ===================== Task Dependencies =====================
    push >> pull

Manual Push

# ===================== Import Libraries =====================
from airflow import DAG
from airflow.operators.python import PythonOperator
from datetime import datetime
import json


# ===================== Push (Send Data via XCom) =====================
def push_data(ti):
    result = {'rows': 1500, 'status': 'ok'}
    ti.xcom_push(key='extract_result', value=result)


# ===================== Pull (Receive Data via XCom) =====================
def pull_data(ti):
    data = ti.xcom_pull(key='extract_result')  # task_ids='push'
    print(f"Got {data['rows']} rows with status: {data['status']}")


# ===================== DAG Definition =====================
with DAG(
    dag_id='xcom_manual_dag',
    start_date=datetime(2026, 4, 20),
    schedule_interval=None,
    catchup=False
) as dag:

    # ===================== Push Task =====================
    push = PythonOperator(task_id='push', python_callable=push_data)

    # ===================== Pull Task =====================
    pull = PythonOperator(task_id='pull', python_callable=pull_data)

    # ===================== Task Dependencies =====================
    push >> pull

# ===================== Import Libraries =====================
from airflow import DAG
from airflow.operators.python import PythonOperator
from datetime import datetime
import json


# ===================== Push (Send Data via XCom) =====================
def push_data_1(ti):
    data_1 = {'rows': 1500, 'status': 'ok'}
    ti.xcom_push(key='extract_data_1', value=data_1)

def push_data_2(ti):
    data_2 = {'rows': 2000, 'status': 'Not ok'}
    ti.xcom_push(key='extract_data_1', value=data_2)



# ===================== Pull (Receive Data via XCom) =====================
def pull_data(ti):
    pull_data_1 = ti.xcom_pull(key='extract_data_1' , task_ids='push_1')
    pull_data_2 = ti.xcom_pull(key='extract_data_1', task_ids='push_2')
    print(f"Got Data 1: {pull_data_1['rows']} rows with status: {pull_data_1['status']}")
    print(f"Got Data 2: {pull_data_2['rows']} rows with status: {pull_data_2['status']}")


# ===================== DAG Definition =====================
with DAG(
    dag_id='7_3_xcom_manual_dag',
    start_date=datetime(2026, 4, 20),
    schedule_interval=None,
    catchup=False
) as dag:

    # ===================== Push Task =====================
    push_1 = PythonOperator(task_id='push_1', python_callable=push_data_1)

    push_2 = PythonOperator(task_id='push_2', python_callable=push_data_2)

    # ===================== Pull Task =====================
    pull = PythonOperator(task_id='pull', python_callable=pull_data)

    # ===================== Task Dependencies =====================
    push_1 >> push_2 >> pull

Passing Lists/Dicts — JSON Serialization

XCom only stores serializable data. For complex objects, use json.dumps().

Solution (JSON Serialization)

json.dumps() → convert object to string
json.loads() → convert string back to object

📌 Use case: Safely pass structured data (lists/dicts) between tasks using XCom

# ===================== Import Libraries =====================
from airflow import DAG
from airflow.operators.python import PythonOperator
from datetime import datetime
import json


# ===================== Push (Send Data via XCom) =====================
def push_data(ti):
    records = [
        {'id': 1, 'name': 'Ahmed',   'amount': 500},
        {'id': 2, 'name': 'Sara',    'amount': 750},
        {'id': 3, 'name': 'Youssef', 'amount': 300},
    ]
    ti.xcom_push(key='daily_records', value=json.dumps(records))


# ===================== Pull (Receive & Process Data) =====================
def pull_data(ti):
    raw = ti.xcom_pull(key='daily_records', task_ids='push')
    records = json.loads(raw)

    total = sum(r['amount'] for r in records)
    print(f"Total amount: {total}")
    for r in records:
        print(f"  {r['name']}: {r['amount']}")


# ===================== DAG Definition =====================
with DAG(
    dag_id='xcom_json_dag',
    start_date=datetime(2026, 4, 20),
    schedule_interval=None,
    catchup=False
) as dag:

    # ===================== Push Task =====================
    push = PythonOperator(task_id='push', python_callable=push_data)

    # ===================== Pull Task =====================
    pull = PythonOperator(task_id='pull', python_callable=pull_data)

    # ===================== Task Dependencies =====================
    push >> pull
