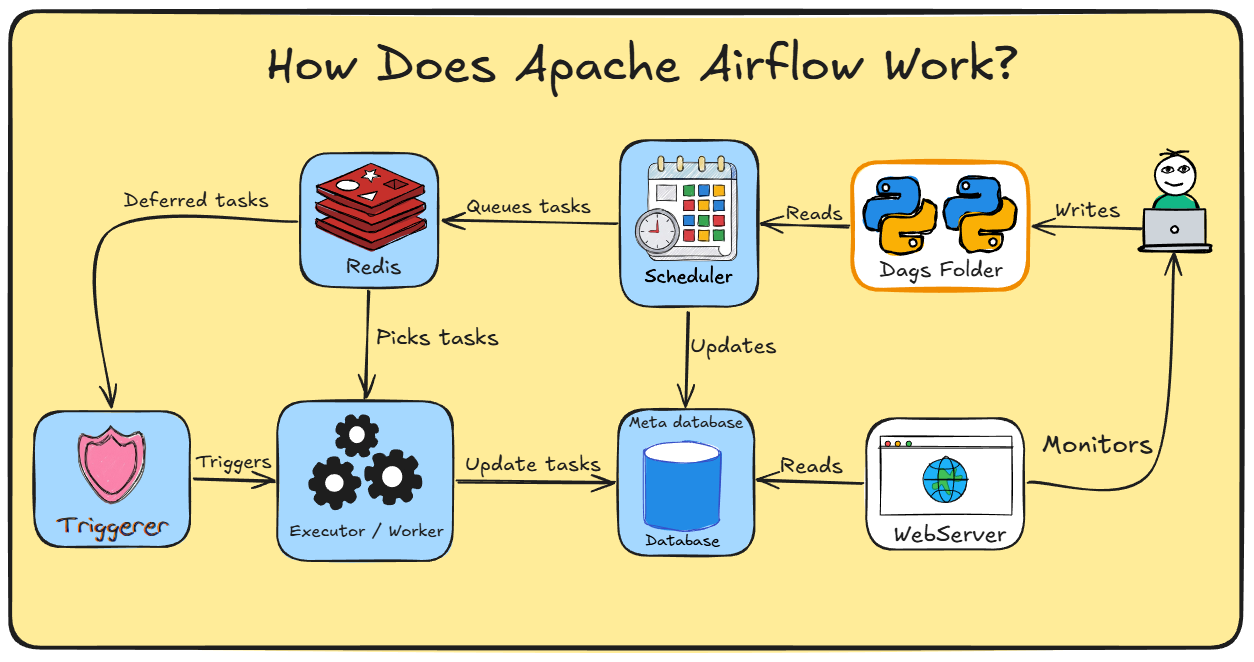

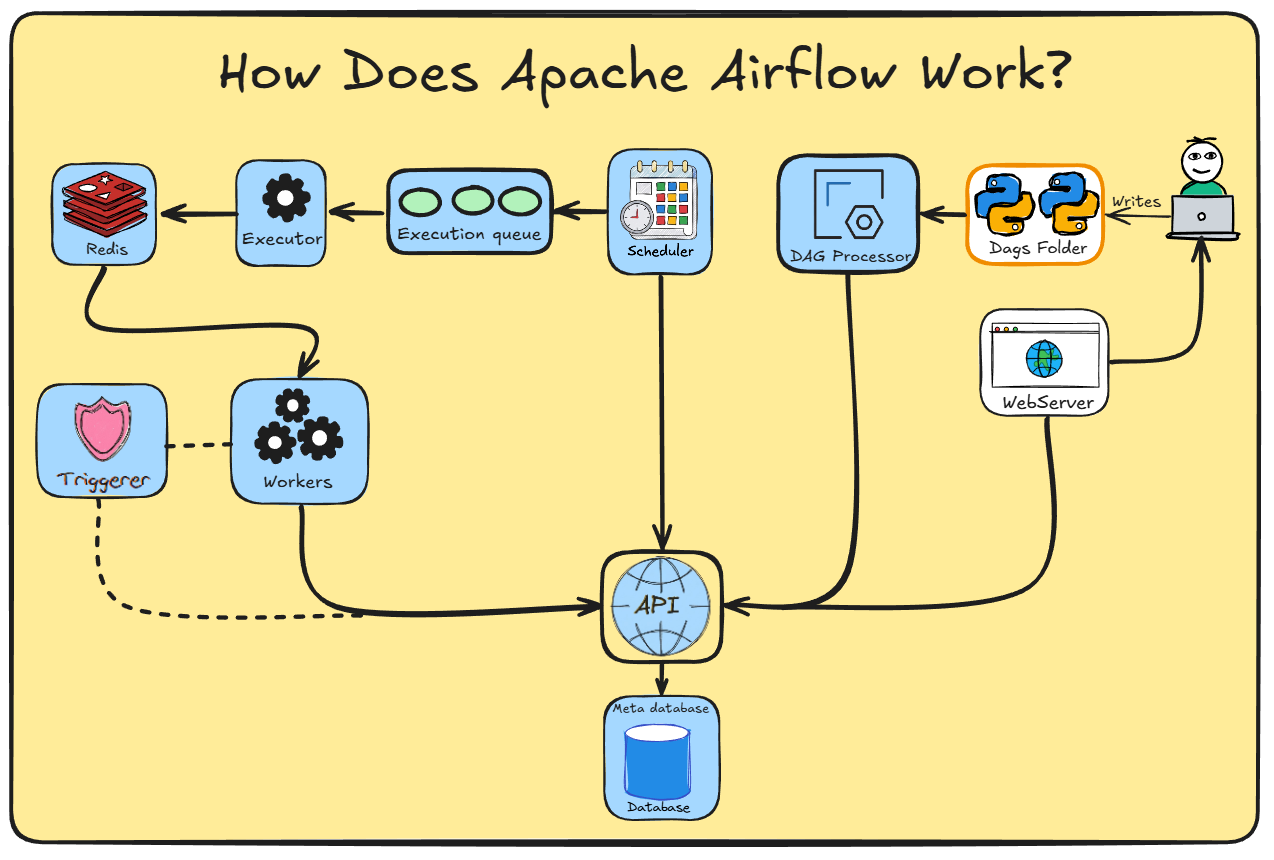

Airflow Core Architecture Components

• DAG Processor: Parses and loads DAGs.

• Scheduler: Decides when tasks run.

• Executor: Defines how tasks are executed:

  • SequentialExecutor: One task at a time (Dev only).

  • LocalExecutor: Parallel tasks on one machine.

  • KubernetesExecutor: Each task runs in its own Pod .

  • CeleryExecutor: Distributed across multiple machines .

• Redis: Queues and distributes tasks.

• Worker: Executes the tasks.

• Triggerer: Runs async tasks without blocking workers.

• Meta Database: Stores all workflow states and configs.

• Web Server: Airflow UI for monitoring and troubleshooting.
